Time-Dependent Laser Attenuation

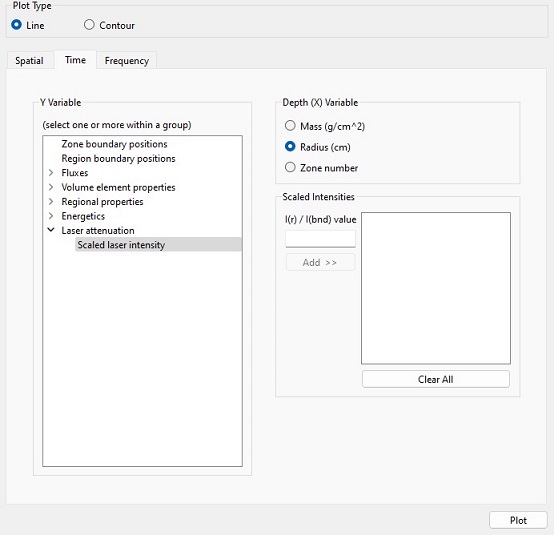

The plot of Scaled laser intensity shows the depth value at which the laser intensity has fallen to a specified fraction of the original intensity, plotted against time.

This option is available only in HELIOS simulations with Planar geometry.

The displayed depth value can be either the mass, radius or zone number and is determined by the radio button selected in the Depth variable box.

The value(s) specified for the fractional laser intensity are entered in the left hand edit box. On clicking the Add button, the value will be added to the right hand box, which lists all the fractional values that have been entered.
