Zone Dependent Data

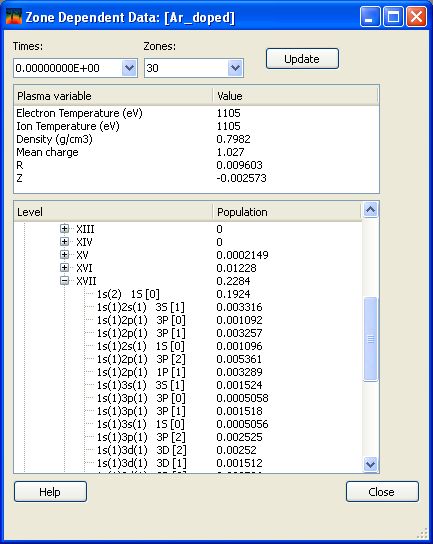

Zone dependent data are displayed by clicking on the Zone Specific Data button in the View panel on the main window.

• Select a time to display the data for from the Times combo box.
• Select a zone from the Zones combo box.
• Click on the Update button.

The upper table shows several plasma variables for the zone, while the lower table shows the populations and ionization fractions.
