Example: Al K-shell absorption spectra

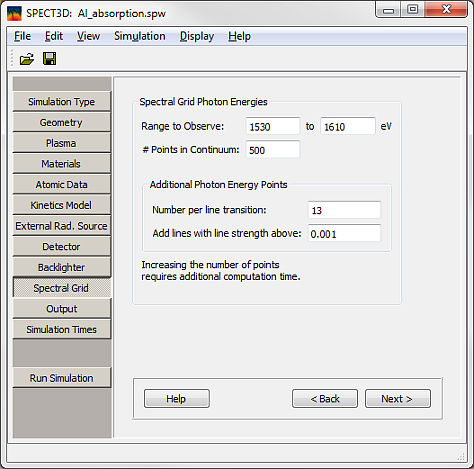

Setting up the Spectral Grid

Click on the Spectral Grid button or on the Next button on the Backlighter page.

• Spectral Grid Photon Energies:
  • Range to Observe: enter 1530 for the minimum energy and 1610 for the maximum.
  • # Points in Continuum: leave the default of 500.
• Additional Photon Energy Points
  • Number per line transition: leave the default value of 13.
  • Add lines with strength above: leave the default value of 0.001.
