Example: Argon Doped Implosion

Setting up the Output

Click on the Output button or on the Next button on the Spectral Grid page:

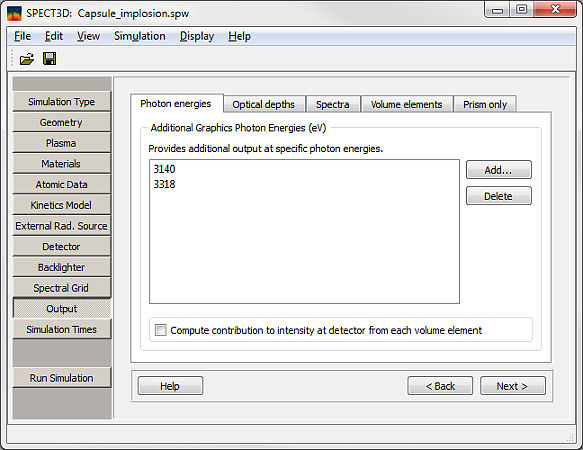

• Photon Energies:
• Click Add, enter 3140 (photon energy in the vicinity of Ar He alpha), and click OK.
• Click Add, enter 3318 (photon energy in the vicinity of Ar Ly alpha), and click OK.

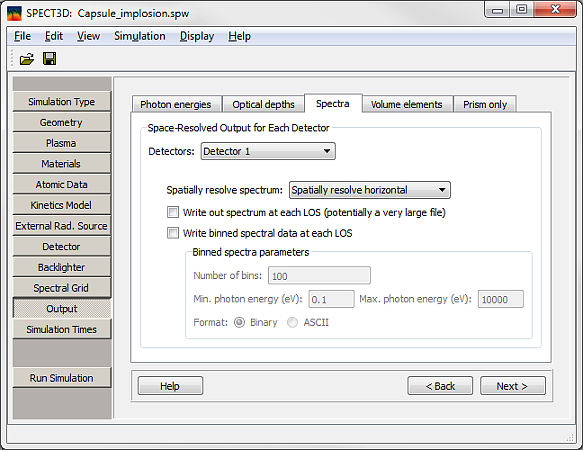

• Spectra: For Spacially resolve spectrum, choose Spatially resolve horizontal from the drop down menu. Note that for spherically symmetric systems, spectra resolved in horizontal and vertical directions will be the same.
