Example: X-Ray Scattering

Setting up the Output

Click on the Output button or on the Next button on the Spectral Grid page.:

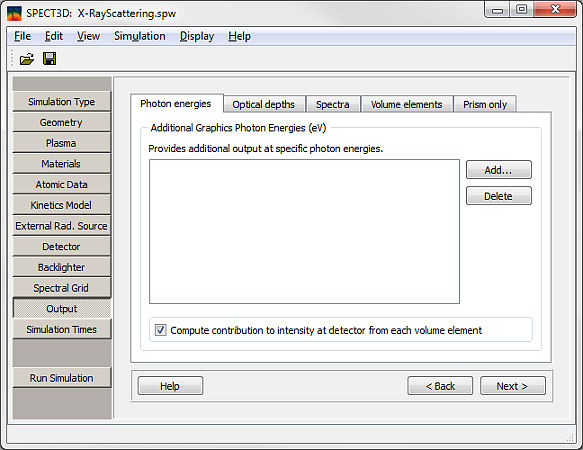

• Photon Energies tab:
• Check Compute contribution to intensity at detector from each volume element checkbox.

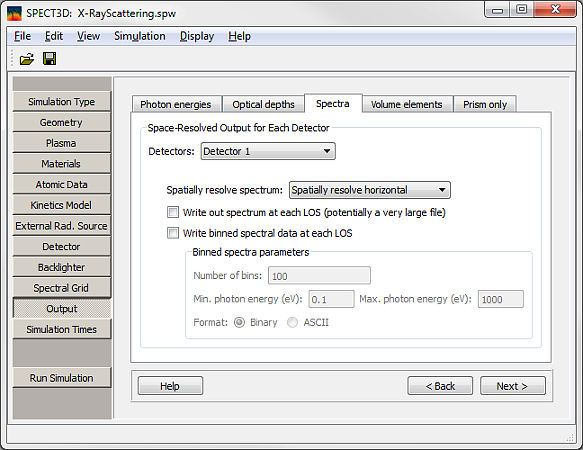

• Spectra: Click the Spectra tab.
  • For Detector 1, under Spatially resolve spectrum, choose Spatially resolve horizontal from the drop-down menu.
