Adding Backlighter Time Steps

The source of the backlighter must be specified for at least one time step. The intensity at the simulation time will be interpolated from the times specified. If a simulation time is outside of the bounds of the specified times, SPECT3D uses the value at the nearest time.

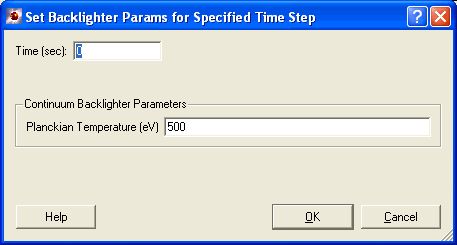

Continuum: Specify a time and the black body temperature.

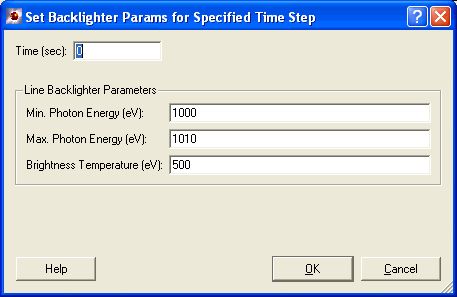

Line: Specify a time, the minimum and maximum photon energies of the line and a brightness temperature.

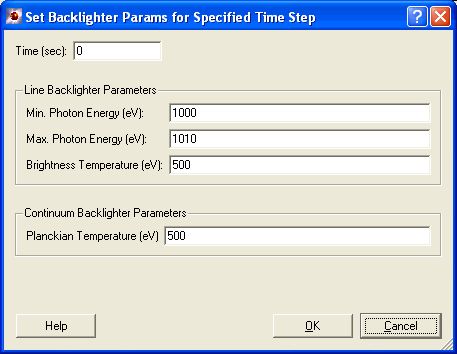

Line + Continuum: Specify the parameters for both the continuum and the line.

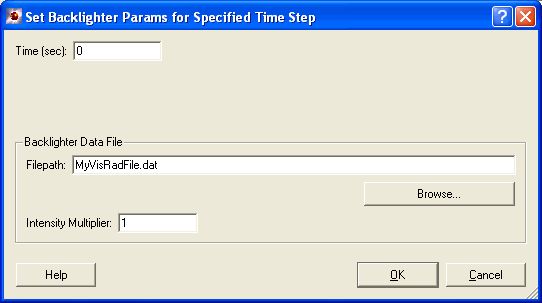

File: Enter or browse for a VisRad file.
