Displaying EXODUS File Information

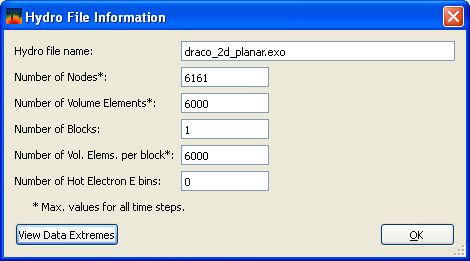

Summary information for data contained in an EXODUS file can be displayed by selecting the menu item Display | Hydro File Info.

Quantities shown are:

• Hydro file name
• Total number of nodes in the hydro grid
• Total number of volume elements in the hydro grid
• Number of blocks in the hydro grid
• Number of volume elements in each block
• Number of energy bins for hot (non-Maxwellian) electrons

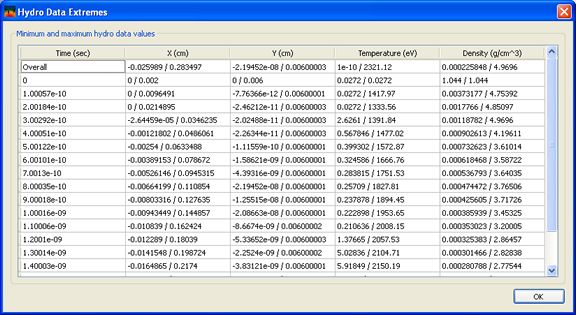

Minimum and maximum values for each dimension of the grid and for temperature and density can be viewed by clicking on the View Data Extremes button:

For a multi time hydro file, the overall minima and maxima are shown in the first row.
