Example: Argon Doped Implosion

Displaying time resolved images

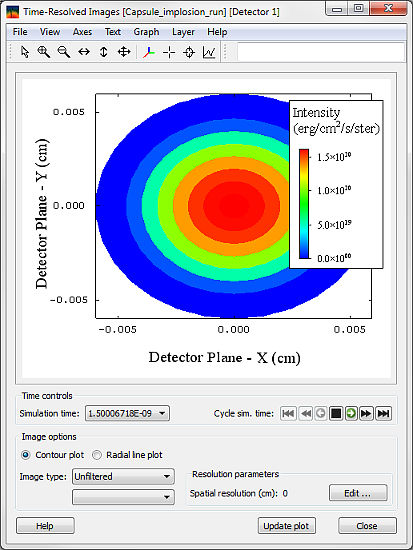

To display time resolved images, select a simulation time (in this example 31), and click the Time-Resolved Images button.

To view monochromatic images :

• In the Image type combo box select Additional photon energy.
• Click the Update plot button.

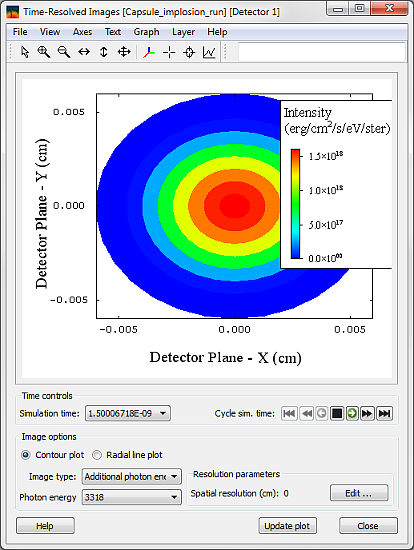

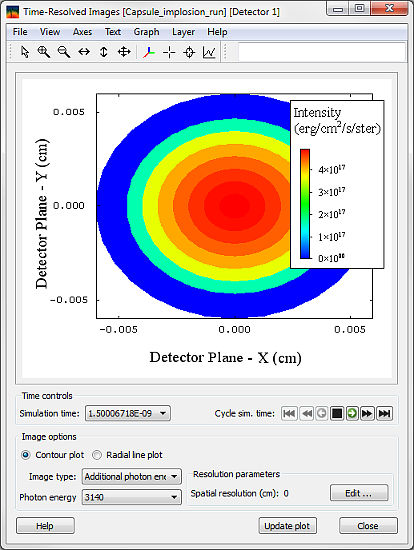

• In the Photon energy combo box select 3318.
• Click the Update plot button.

The differences in the images reflect the plasma's spatial non-uniformity and indicate that different spectral features can originate in different plasma regions.
