Setting up the X-Ray Diode Filter Response (XRD) Tab Parameters

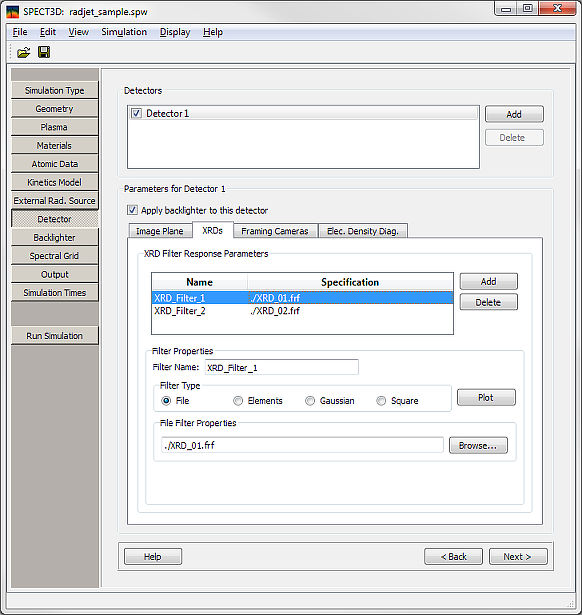

Click on the XRDs tab.
XRD Filter Response Parameters: Add files to represent the x-ray diode's response by clicking
on the Add... button to add XRD_Filter_1.
Highlight XRD_Filter_1 in the table; ensure that Filter Name also says XRD_Filter_1.
Filter Properties:
Filter Type: select the File radio button; browse to the Examples -> Radjet folder and chose XRD_01.frf.
Next click Add again in the XRD Filter Response Parameters and highlight the newly added XRD_Filter_2 in the table so that it appears in the Filter Name.
Now set the Filter Type for XRD_Filter_2 by selecting the File radio button; browse to the Examples -> Radjet folder and select XRD_02.frf.
