Example: X-Ray Scattering

Setting up the Geometry

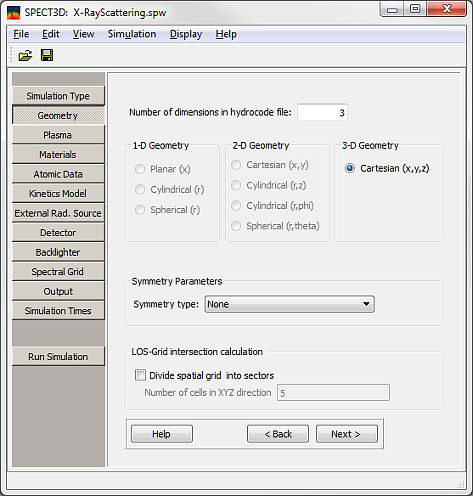

Click on the Geometry button or on the Next button on the Simulation Type page.

The number of dimensions in the data set will be read in from the Exodus file.

• Under 3-D Geometry: select Cartesian (x,y,z).
• Symmetry Parameters: leave the default Symmetry type of None.
