Example: X-Ray Scattering

Setting up the X-Ray Source Parameters

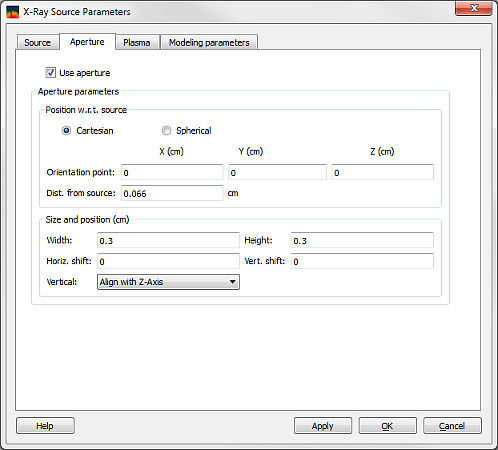

Click on the Aperture tab. Select Use aperture and enter Aperture parameters as described below:

• Position w.r.t. source:
  • Select Cartesian.
  • Orientation point: 0 (X), 0 (Y), and 0 (Z) cm.
  • Dist. from source: enter 0.066 cm.
• Size and position (cm):
  • Width: enter 0.3
  • Height: enter 0.3
  • Horiz. shift: enter 0
  • Vert. shift: enter 0
  • Vertical: select Align with Z-Axis from the drop-down menu.

Next
