Rays Between Backlighter (Uniform) and Detector: Point Projection

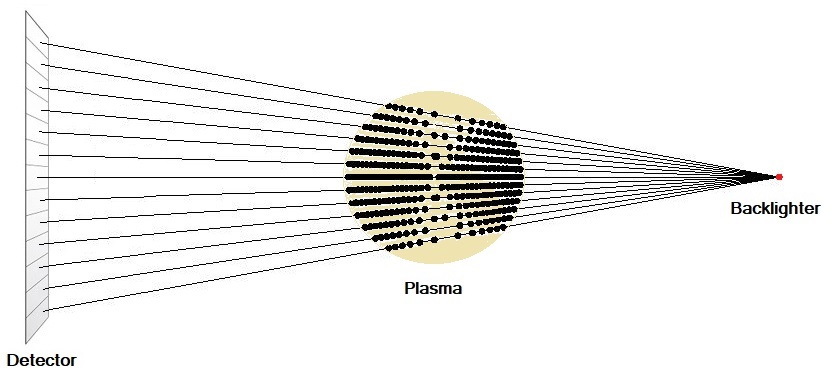

For Point Projection, a Uniform backlighter results in a single ray being drawn between each detector pixel and the backlighter. A schematic illustration for a rectangular detector is shown below for a 2D cross section. The points in the plasma represent intersections of the rays with walls of the plasma volume elements.

When specifying Point Projection, the center of the detector points to the Backlighter Position.
